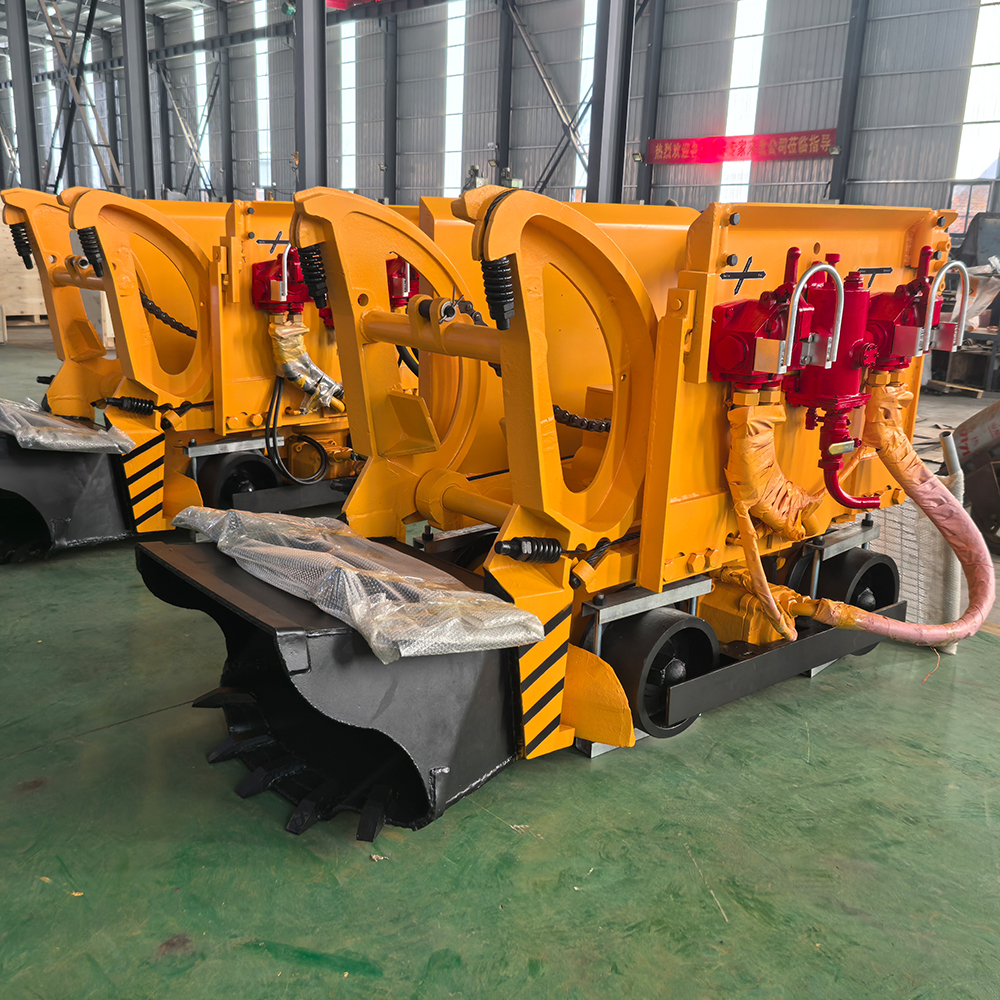

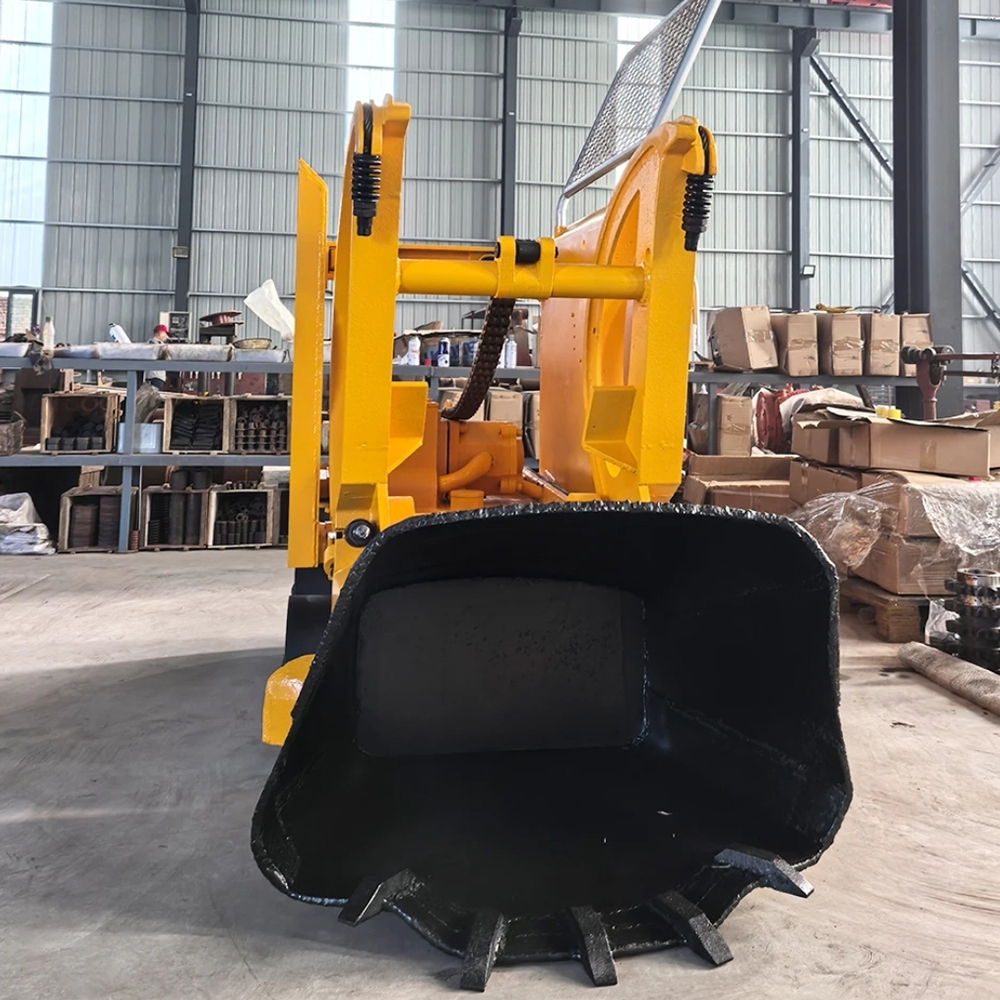

Z Series Electric Rock Loader Machine

z series electric rock loaders are suitable for all kinds of mine horizontal roadway, the slope is less than or equal to 8 degrees, the machine for the bucket type, before loading and unloading, self-

sales@chinacoalintl.com

+86-15376502829

Please Leave a Message

What can I do for you

Introduction of Z Series Electric Rock Loader Machine

Parameter of Z Series Electric Rock Loader Machine

Type		Z-17AW	Z-20	Z-20AW	Z-30AW	ZQ-26
Loading Capacity (m3/h)		20-30	30-40	30-40	50-60	40-50
Capacity(m3)		0.17	0.2	0.2	0.3	0.26
Loading Width(M)		1.7	2.0	2.0	2.2	2.7
Rail Gauge(mm)		600mm (When the rail gauge is 750mm,762mm, please mark in the order)
Power		Electric motor	Electric motor	Electric motor	Electric motor	wind motor
Travel Power(kw)		10.5	10.5	10.5	1.5	10.5
Raising Hopper Power(kw)		10.5	10.5	13	15	15
Discharge Height(mm)		1250	1330	1360	1370	1250
Dimension(mm)	Length (bucket down) L	2120	2480	2400	2620	2375
	Width (pedal down)	1011	1210	1330	1300	1380
	Height (bucket working) H2	1920	2180	2180	2260	2240
	Height (bucket down) H1	1200	1518	1460	1545	1455
Weight(kg)		3760	3750	3700	4600	2700
