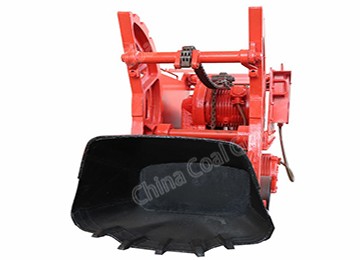

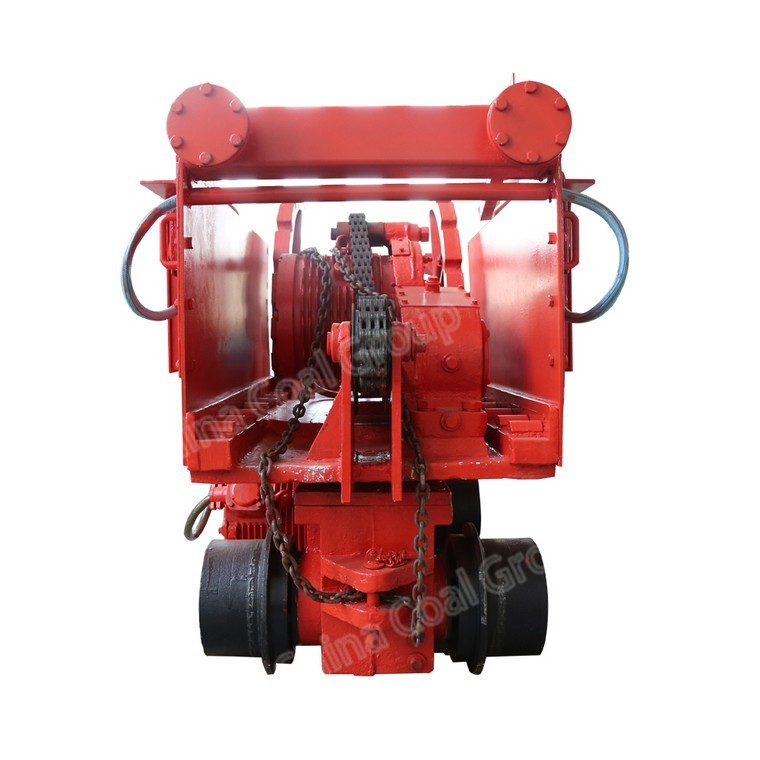

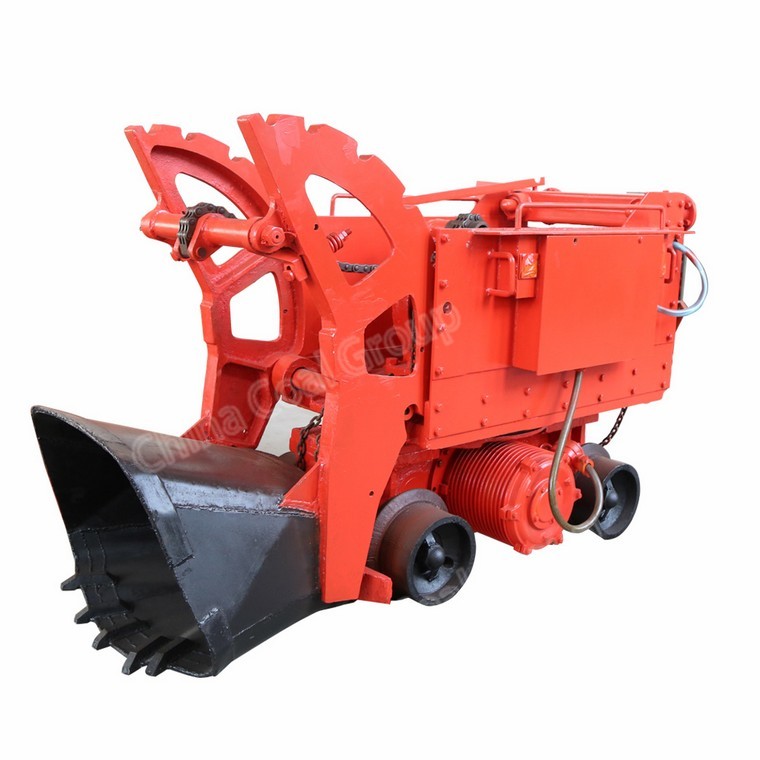

ZQ-26 Pneumatic Mucker Rocker Shovel Is a compressed air powered rock shovel used for moving rocks, ore when driving headings or the explosive blows up the big rock or ore. It is a high output rock shovel with minimum maintenance costs; loading materials: gold, non-ferrous metal, black metal, nonmetal, and rock, ore, etc. It can be used in a explosion proof fields. The max diameter of the medium is 500mm. When the diameter is 250mm, the loading efficiency is best. It runs on the railway track, so the wheel gauge is 600mm in normal, when the gauge is 762mm, 900mm, or others, please tell in advance.
|
Model |
ZQ-26 |
|
Bucket volume |
0.26M3 |
|
Technique productivity |
52-60M3/h |
|
Loading width |
2500-2700mm |
|
Unload height |
1250mm |
|
Unload distance |
480mm |
|
Max. Air consumption |
11.5-19M3/min |
|
Working pressure |
5-6bar |
|
Gauge |
600mm |
|
Wheel diameter |
1000mm |
|
Length |
2375 |
|
Width |
1370 |
|
Height |
1375 |
|
Motor |
9+15kw |
|
Working speed |
about 0.79m/s |
|
Promoting speed |
0.46-0.71m/s |
|
Weight |
2700kg |
