NOTICE:

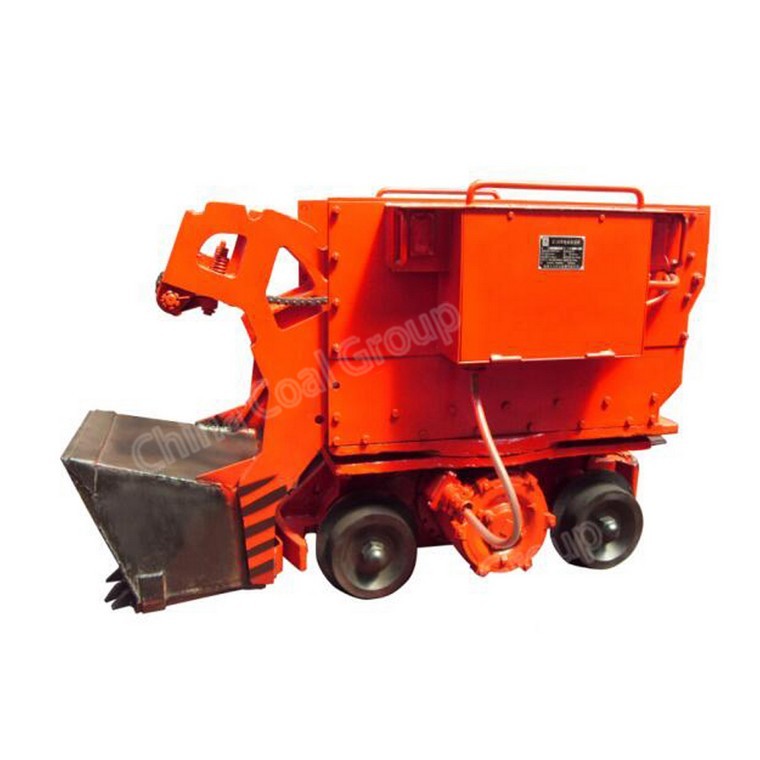

Z20 Rail Mucking Machine is a single bucket, front loading after unloading, and the rock mechanical walking on the tracks. Its purpose is to blasting rock or ore caving down into the back of the car. Z20 Rail Mucking Machine is not explosion-proof products; it is strictly prohibited in the inflammable and explosive gas such as gas environment.
1. The electric rock loader is compact in structure which staffed narrow roadway .it is stable in operation, with no need of maintenance at the front 2000 hours
2. The Z20 electric rock loader can load wide range of materials .it is of high efficiency.
3. The electric rock has great humidity resistance. it can be used in dry or damp places
4. The electric rock loader adopt alloy wear resistance materials which can be in utilization for a long time
|
Model |
Z20 |
Z30 |
|
|
load capacity |
40cbm/h |
60cbm/h |
|
|
bucket capacity |
0.2cbm |
0.3cbm |
|
|
loading Width |
1900mm |
2200-2500mm |
|
|
Discharge height (H) |
1250mm |
1300mm |
|
|
Dumping reach (S) |
350mm |
350mm |
|
|
Max operating height (H2) |
1940mm |
2250mm |
|
|
Travel speed |
0.99m/s |
0.99m/s |
|
|
motor model |
JI2-8 |
JI2-8 |
|
|
motor power |
2x10.5kw |
2x13kw |
|
|
track gauge |
|
600mm (customized) |
600mm (customized) |
|
overall dimension |
L (bucket is down) |
2120mm |
2590mm |
|
W |
1070mm |
1200mm |
|
|
H (bucket is down) |
1305mm |
1443mm |
|
|
|
|
|
|
|
machine weight |
|
3400kg |
4300kg |
