NOTICE:
Z-17AW electric Rock Mucking Loader is used to load the rock, ore when the explosive blows up the big rock or ore in underground mining or tunnel.
Z-17AW electric Rock Mucking Loader is used to load the rock, ore when the explosive blows up the big rock or ore in underground mining or tunnel. Z-17AW Electric Rock Mucking Loadering materials: gold, non-ferrous metal, black metal, nonmetal, and rock, ore, and etc. The max diameter of the medium is 500mm. When the diameter is 250mm, the loading efficiency is best. It runs on the railway track, so the wheel gauge is 600mm in normal, when the gauge is 762mm, 900mm, or others, please tell in advance.
1. Strictly prohibit other people to operate the machine expect the technician.
2. Strictly prohibit two people work at each side together.
3. Strictly prohibit check the machine before the electric motor put off.
4. Scope of application: section of the tunnel: width: >=1.8m, Height: >=2.0m.
Parameter of Z-17AW Electric Rock Mucking Loader
1. Bucket volume
0.17+-0.017M3
2. Technique productivity
>=30M3/h
3. Unload height
>=1210m
4. Unload distance
>=270m
5. Max working height
1920m
6. Gauge
600mm
7. Wheel diameter
850mm
8. Transfer overall dimension
(L*W*H)
9. Electric motor
speed
10. Working speed
about 0.85m/s
11. Bucket promoting speed
0.46-0.71m/s
12. Weight
3500kg
This product has been exported to the United States, France, Canada, Indonesia, Russia, Vietnam, Australia, South Korea, Iran and other countries. It has won the unanimous praise of customers.
The products we operate include Mucking Machine,Rock Mucking Loader,Tunnel Mucking Machine,Mucking Loading Machine,Rock Mucking Loading Machine and many more.we provide Free Consultation Complete After-Sales Service！
Introduction of Z-17AW Electric Rock Mucking Loader

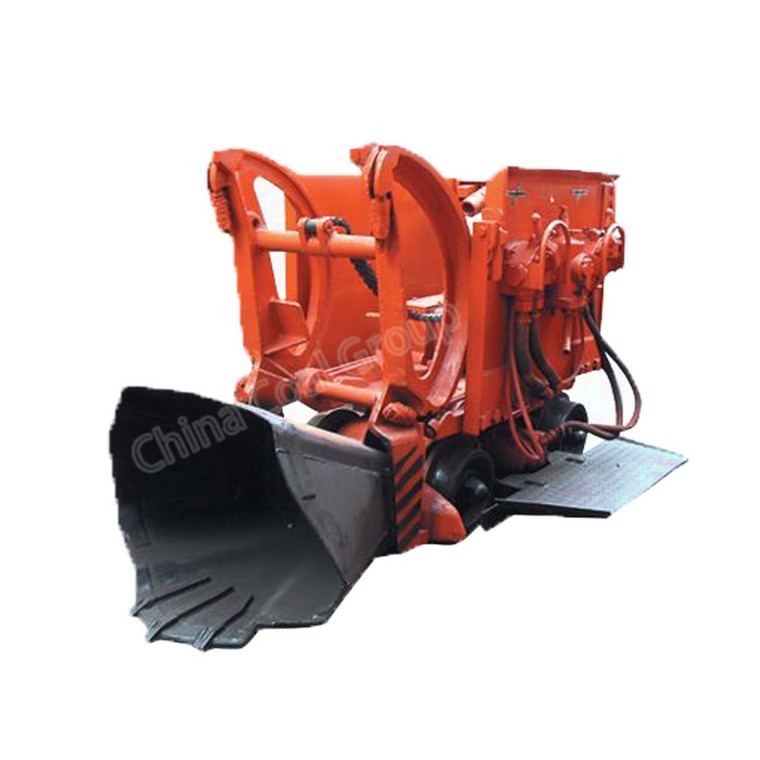

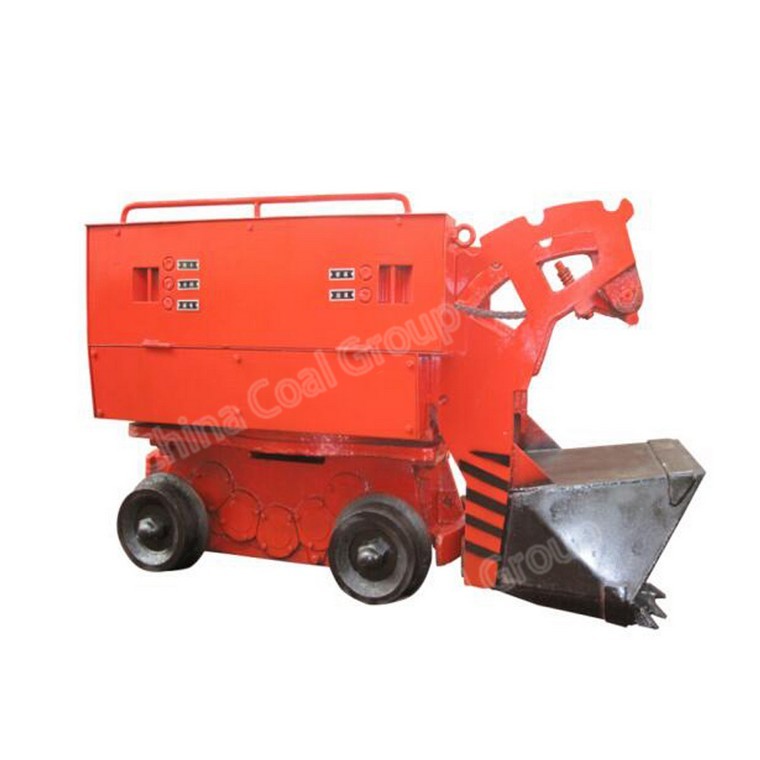

Pictures of Z-17AW Electric Rock Mucking Loader
